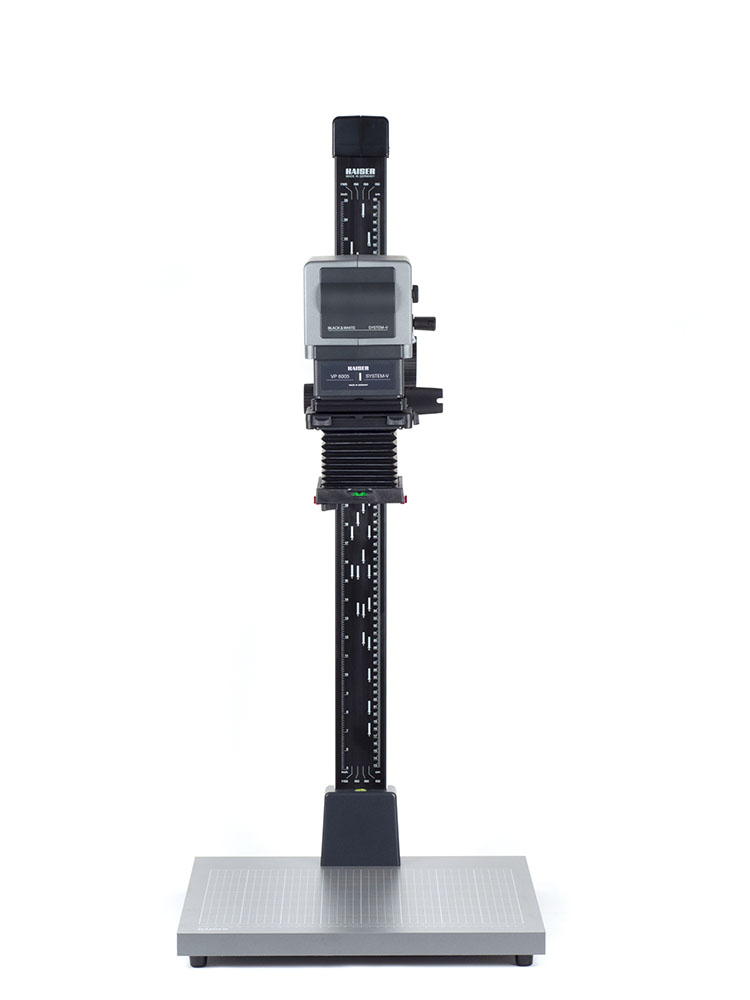

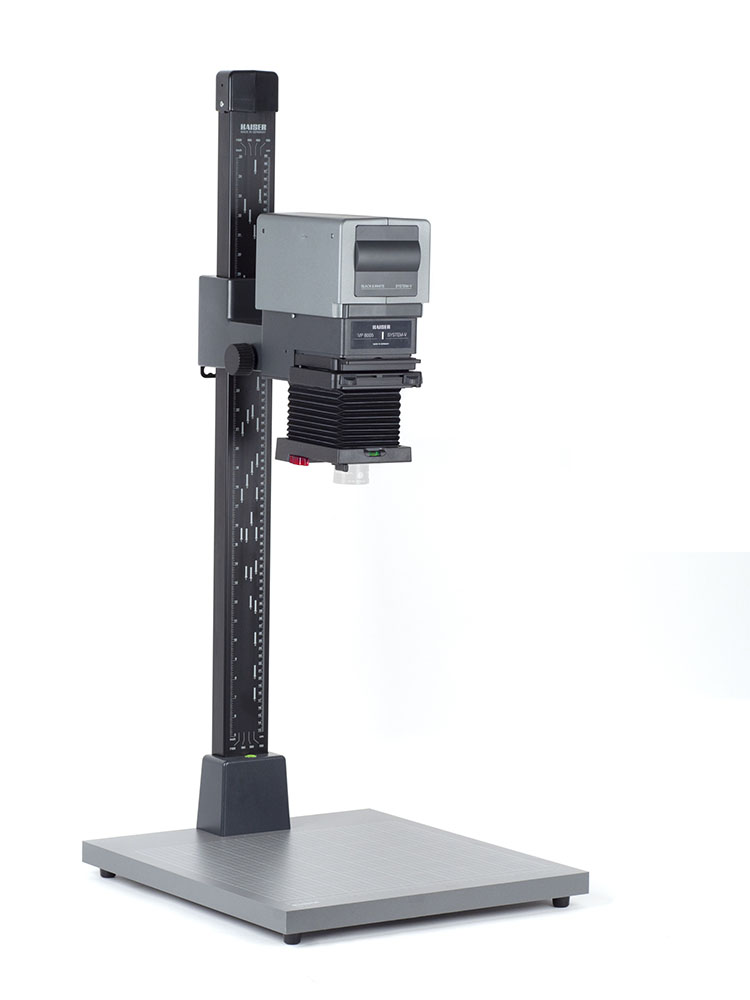

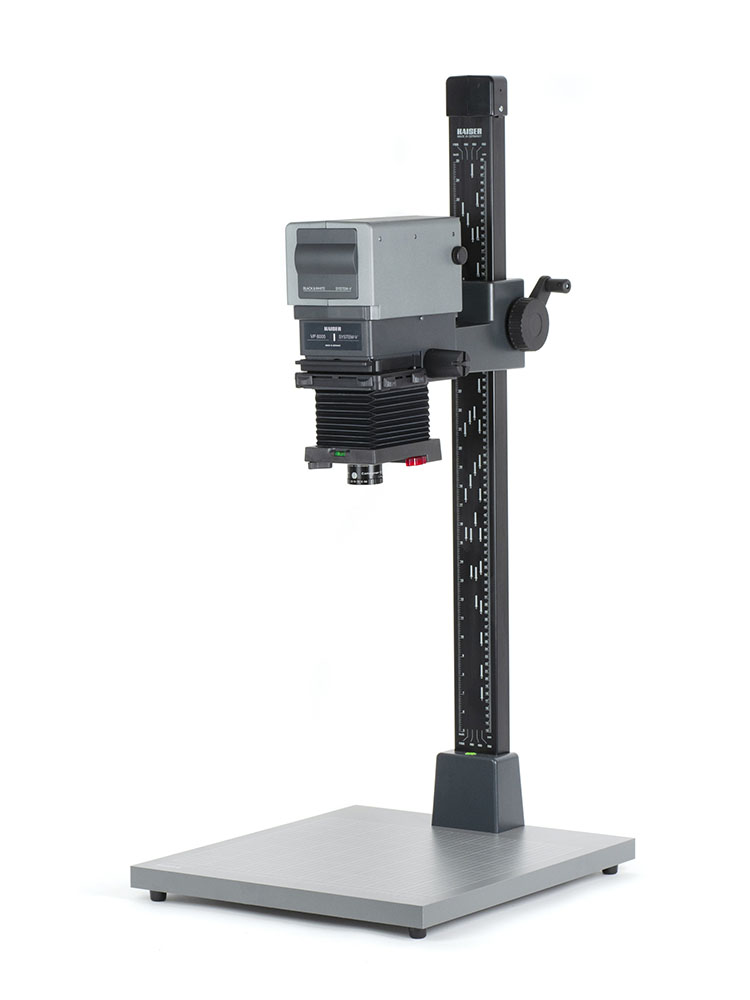

B & W Enlarger VP 6005 SYSTEM-V
Black and white enlarger for printing black and white negatives onto photographic paper. For formats from 24 x 36 mm to 6 x 6 cm and lenses up to 80 mm focal length. Convertible to formats up to 6 x 9 cm or to a copy stand. The enlarger head features a removable book-style stage, equipped with AN glass on top and a 6 x 6 cm format mask on the bottom, interchangeable with the included pair of 35mm masks (24 x 36 mm). 75 W opal lamp. Filter drawer, e.g., for Multigrade® filters . Interchangeable double condenser up to 6 x 6 cm. Lens holder with spirit level and red filter, swivels for Scheimpflug correction. Quick-change lens system. Height adjustment via hand crank. Suitable for wall and floor projection. Lens not included. Enlarging lenses can be found here.
Wide, low-vibration guide column. Matte gray coated baseboard with fine grid and height-adjustable feet.
Description
Technical specifications:
- Column (H x W x D): approx. 1000 x 70 x 35 mm;
- Base (W x H x D): approx. 450 x 28 x 500 mm
- Lamp: Opal lamp 75 W, E27
- Filter compartment: 85 x 85 mm;
- Distance optical axis – base: approx. 220 mm;
- Power cord: approx. 2.50 m ;
- 100-120V/60Hz, US Plug
Scope of delivery:
Enlarger with book-type image stage, equipped with anti-Newton glass / format mask 6 x 6 cm (4434), format masks 24 x 36 mm (4486), opal lamp (4356), diffuser for filter drawer, two lens retaining rings. Lens not included.
More information on the VP 6005 SYSTEM-V B/W Enlarger:

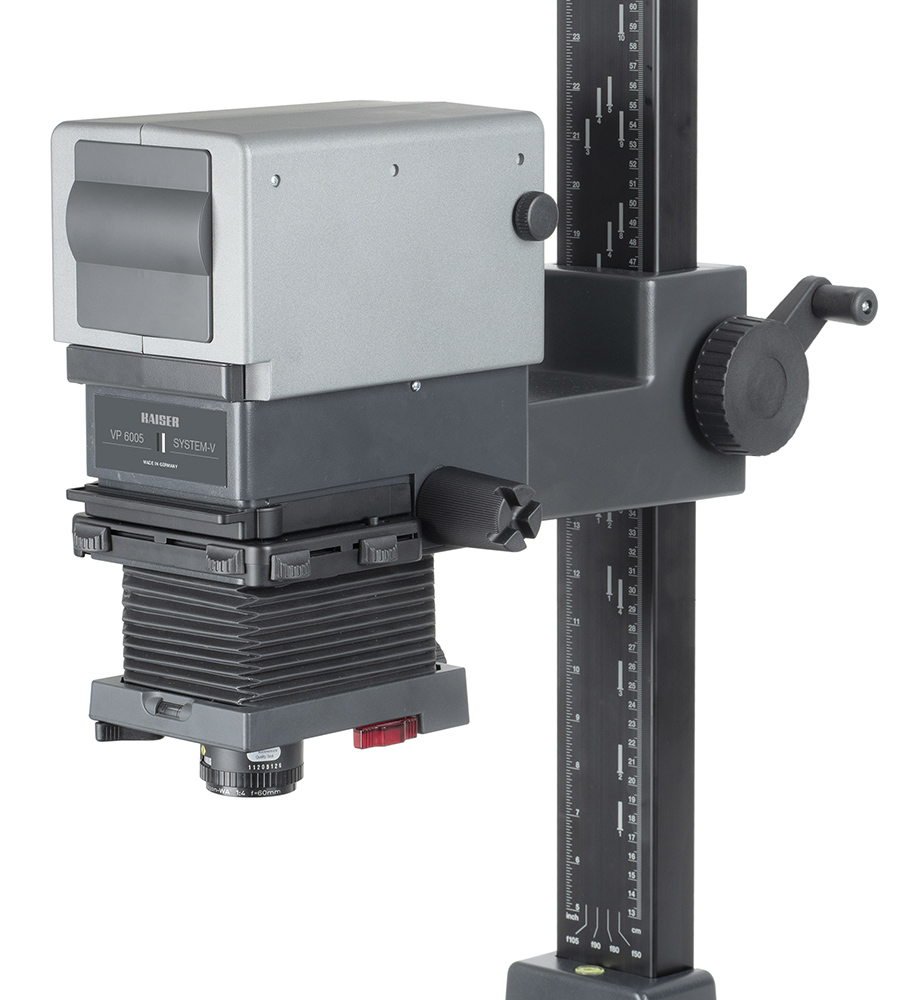

Lighting head with 75-watt opal lamp, adjustable lamp. Filter drawer for 8.5 x 8.5 cm filters (e.g., Multigrade® filters ); with diffuser for even light distribution.

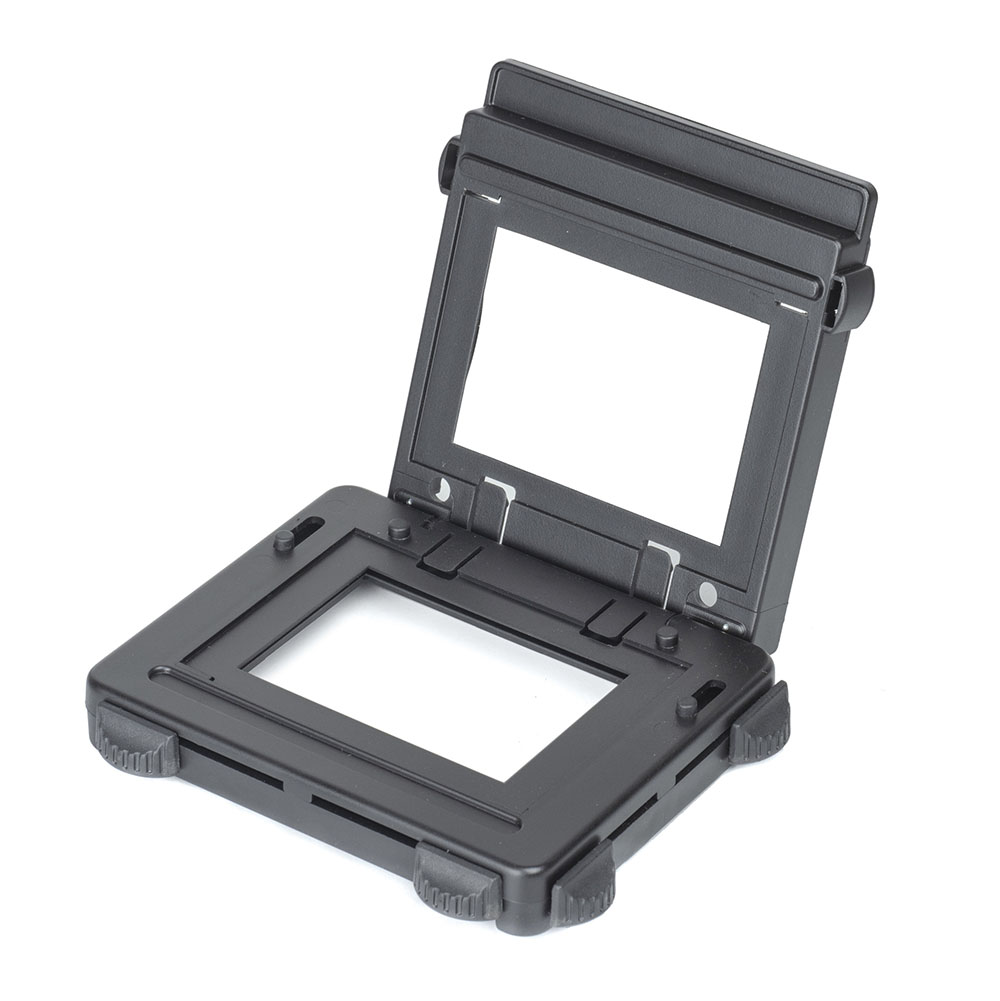

Removable book-style stage with interchangeable inserts, adjustable format apertures, adjustable film stop, and registration pins. Includes a pair of 6 x 6 cm format masks/AN glass and 24 x 36 mm format masks. Additional format masks and glass inserts are available as optional accessories.
Dual condenser for formats up to 6 x 6 cm, interchangeable with a dual condenser for formats up to 6 x 9 cm (4449).
Lens holder .With spirit level and sliding red filter, swivels for Scheimpflug correction. Quick-change mechanism for easy lens mounting with lens retaining ring.
Height adjustment via hand crank and plastic-bearing friction drive.
Wall projection: The head can be swivelled 90° on the support arm.
Floor projection: The guide column can be rotated 180° and mounted in the base.

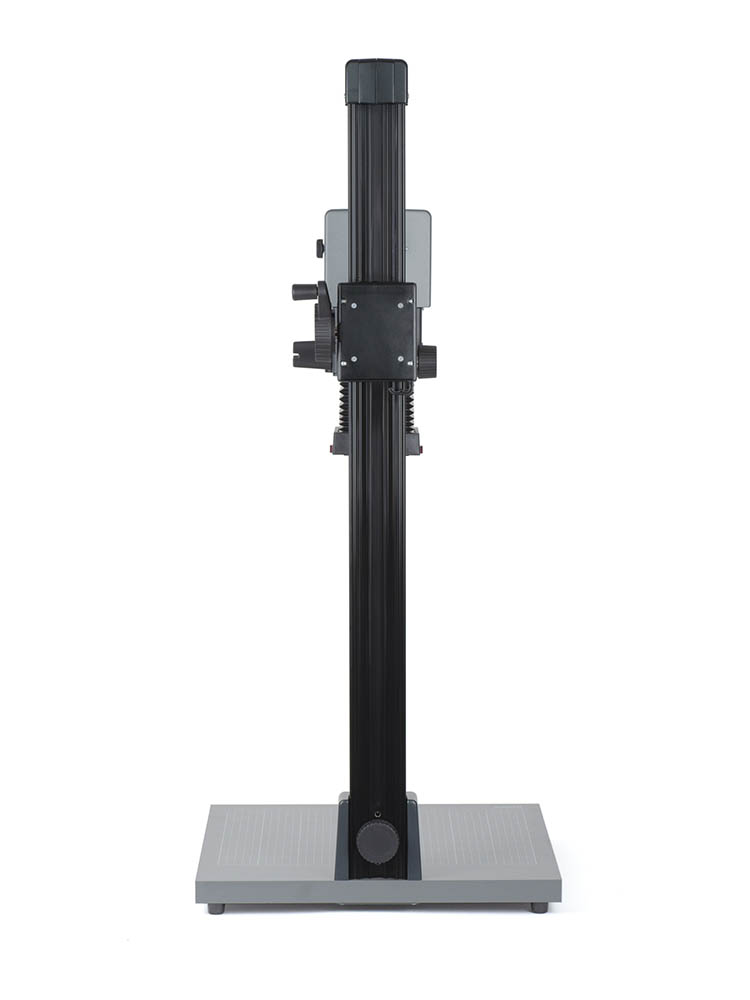

Wide, low-vibration guide column made of matte black anodized aluminum profile tubing with cm and inch scales and markings for magnification ratios.
Non-reflective, matte gray coated baseboard with printed fine grid and cm and inch scales, and cast aluminum base for the guide column. Individually height-adjustable feet. Spirit level in the base.
Compatible with other SYSTEM-V components (e.g., wall mount, longer guide column, larger baseboard).

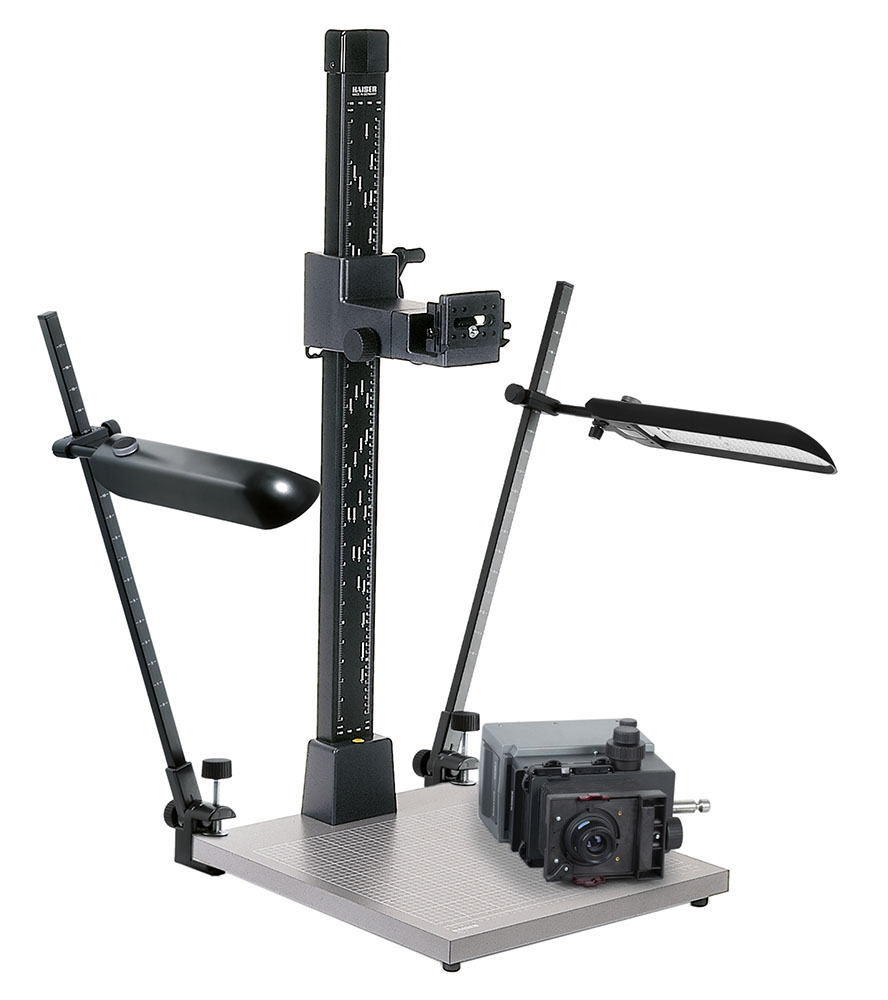

Converts to a copy stand in just a few steps. For this purpose, the device head is replaced with a camera arm from the R1 reproduction system. If required, a lighting unit from the R1 reproduction system can also be attached to the baseboard.
Subject to errors and technical changes.
