RB 521 AB Copylizer Lighting Unit

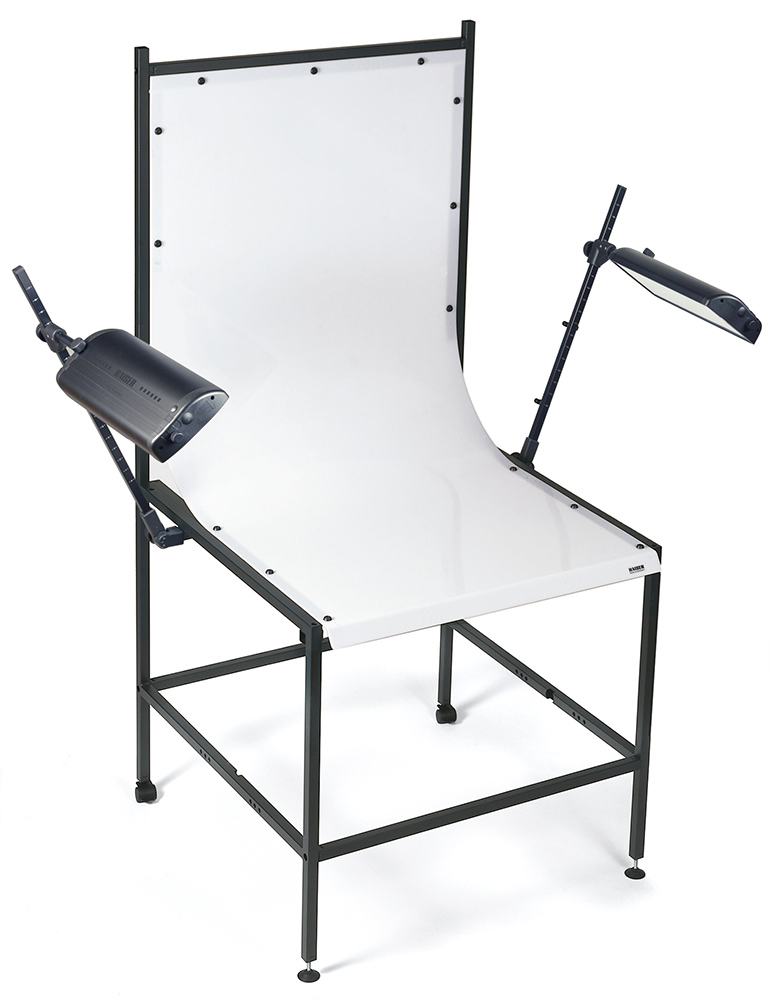

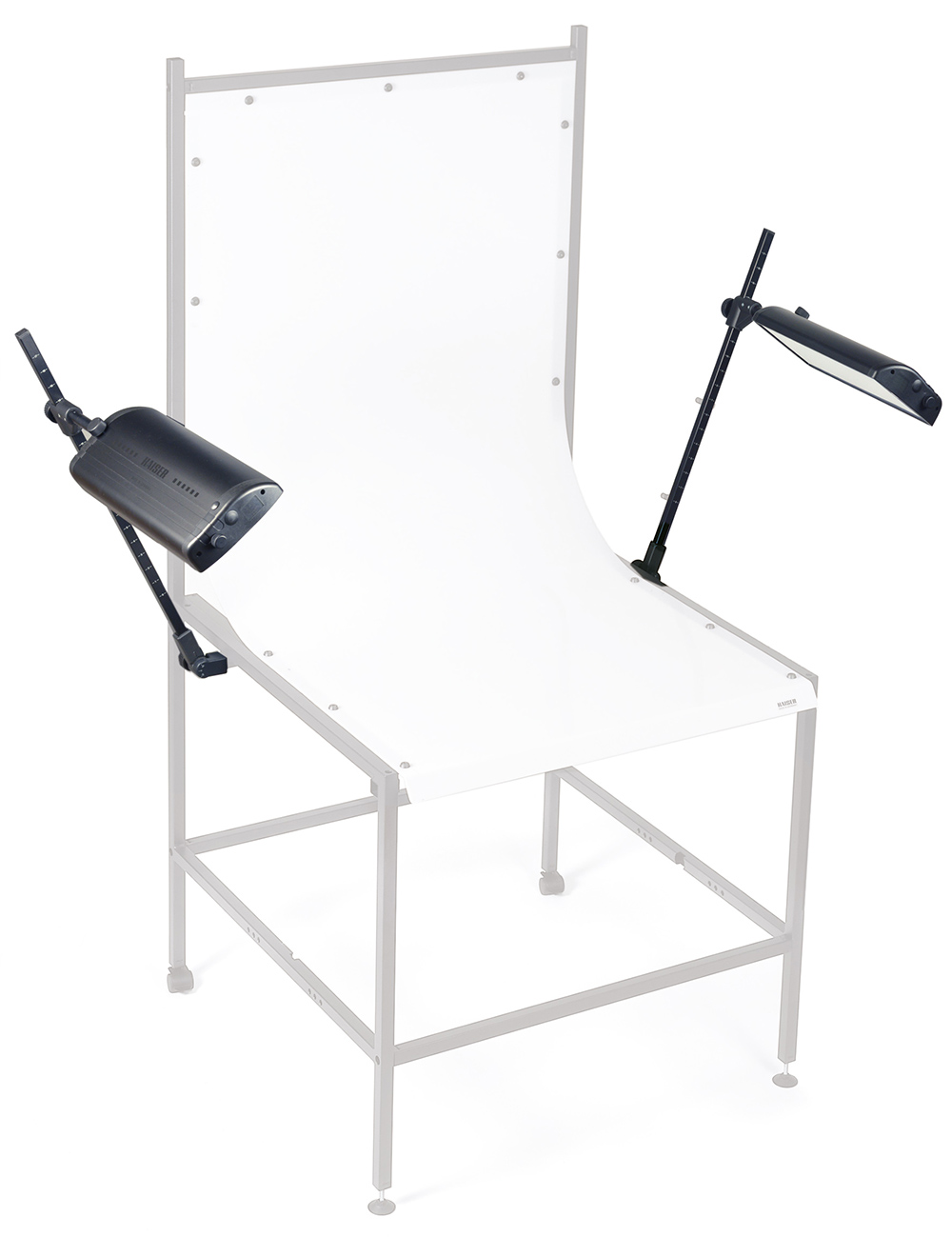

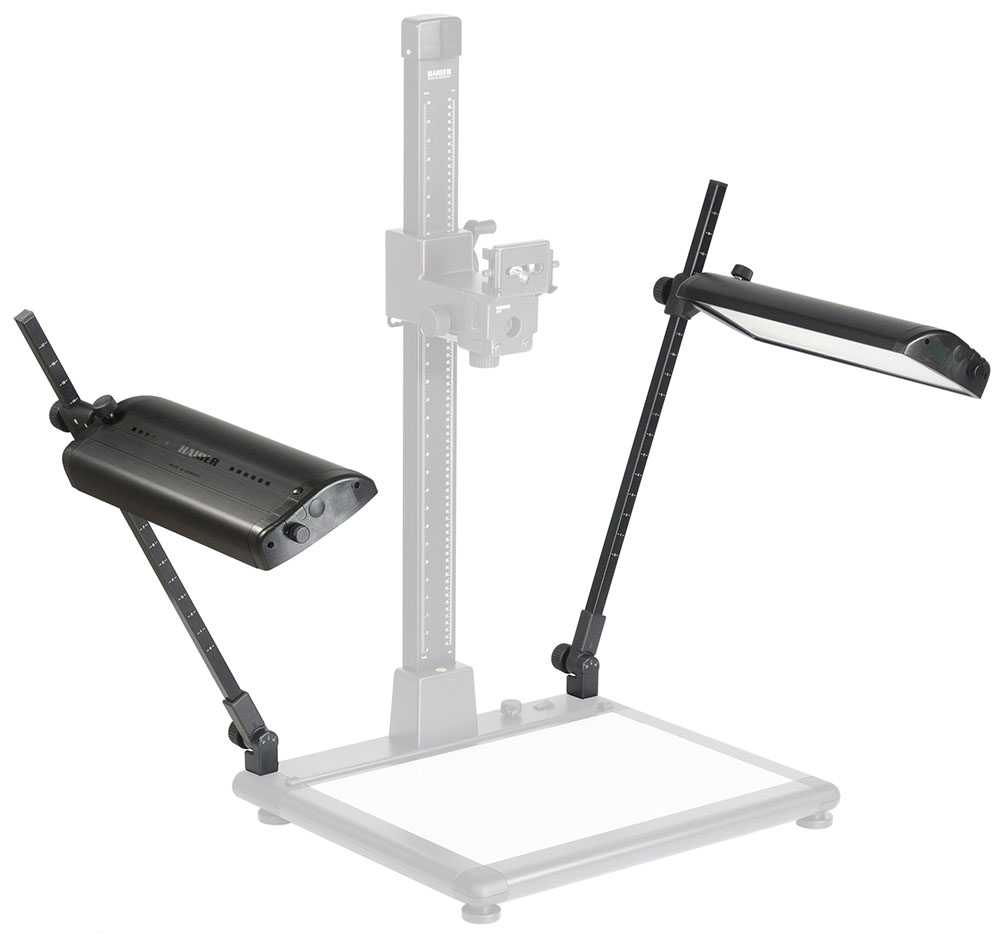

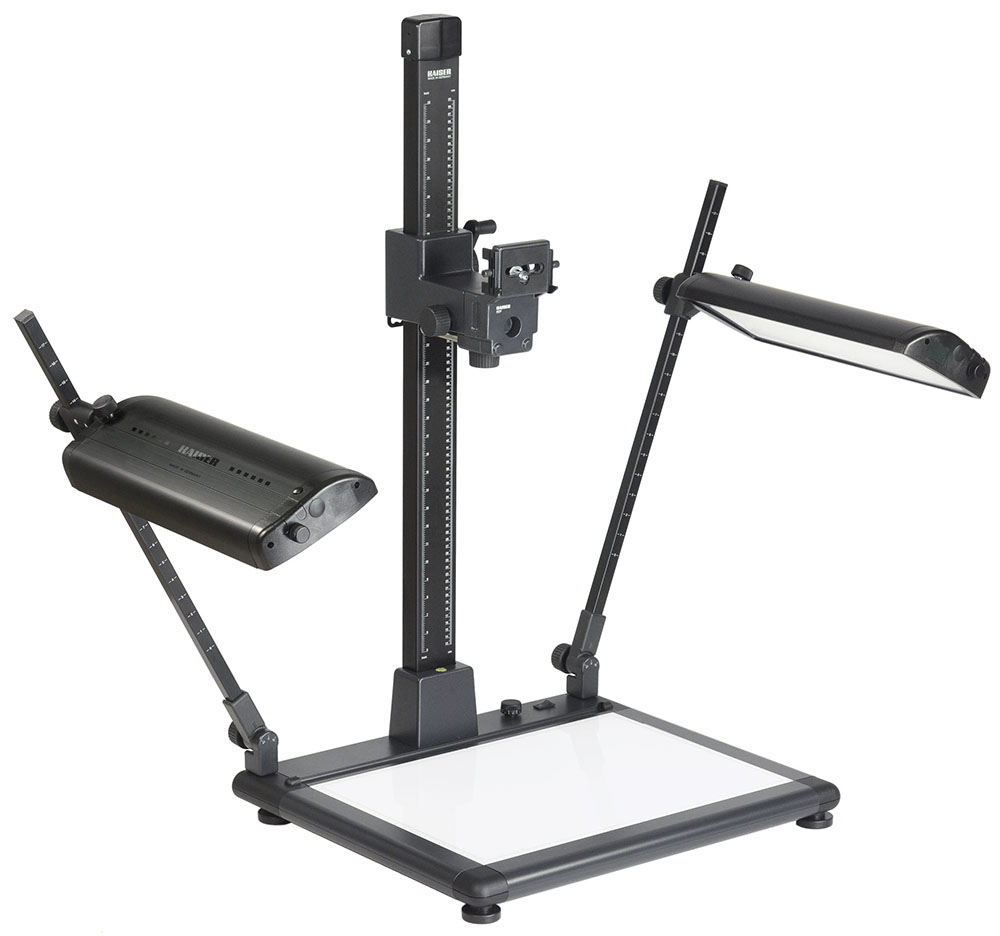

LED surface lighting unit with two light banks for even and soft illumination. Suitable for Copylizer exe.cutive LED (KA5215) and Illumina Base exe.cutive LED (KA5244). Can also be used as surface lighting unit for TopTable PRO shooting table.
Emitted light has absolutely no IR and UV content. Constant current driver for flicker-free operation. Each light equipped with 192 selected white SMD LEDs, 5600 Kelvin, CRI: 96. Elaborate passive cooling via LED board and light metal housing.
Lights can be dimmed separately.

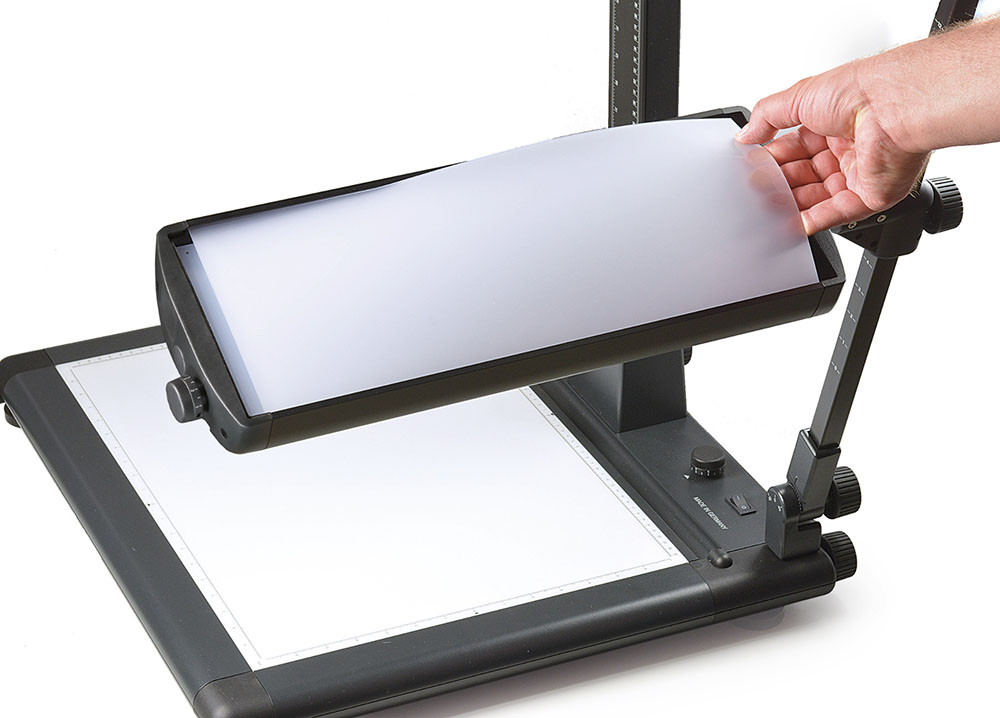

Lamp housings made of sturdy anodized aluminum section, can be swiveled, shifted and adjusted in height. Detachable soft screens.

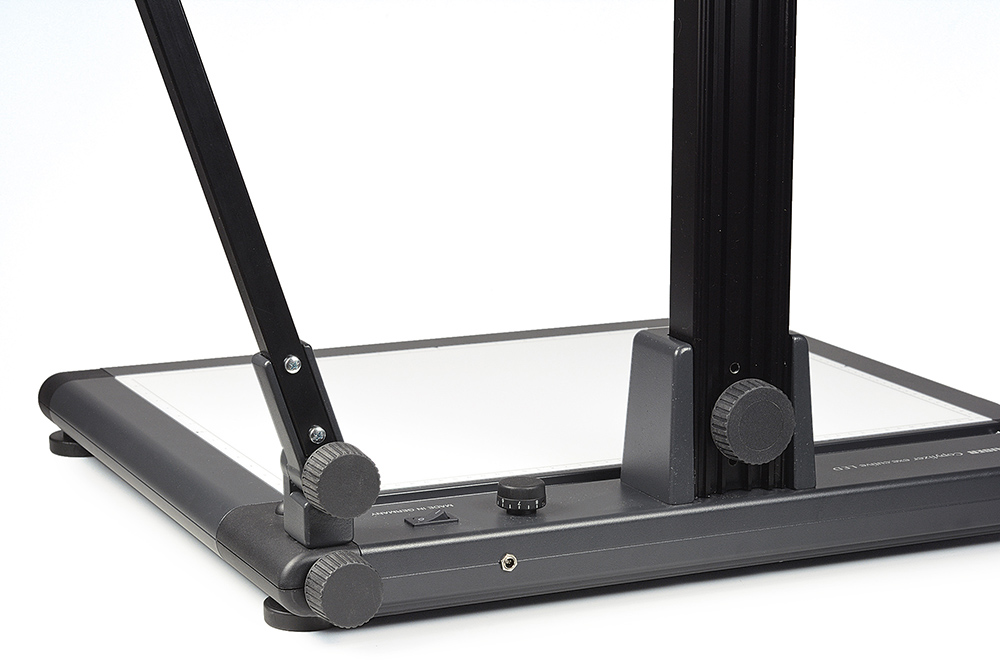

Vertical arms with height markings, tiltable with detents. Mounted with strong articulated joint bases.
Mains operation. Mains leads with cable switch.
Description
Specifications
- LED arrays: 2 x 192 SMD LEDs
- Color temperature: 5600 K
- Color rendition index: CRI: 96
- LED angle of radiation: 100°
- Max. illumination
- with soft screen: 4600 lux,
- w/o soft screen: 5200 lux
- (based on uniform illumination of a 16.5 x 11.5 in. flat subject)
- Power consumption: 2 x 24 W
- Operating voltage: 100-120 V, 60 Hz, Canadian Version
- Light emitting area of one light: 39 x 16.5 cm (15.4 x 6.5 in.)
- Vertical arms: 76 cm (29.9 in.), 20 x 20 mm (0.8 x 0.8 in.) edge dimension
- Mains leads: approx. 2.40 m (7.9 ft.) each
Subject to errors and technical changes.
This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
