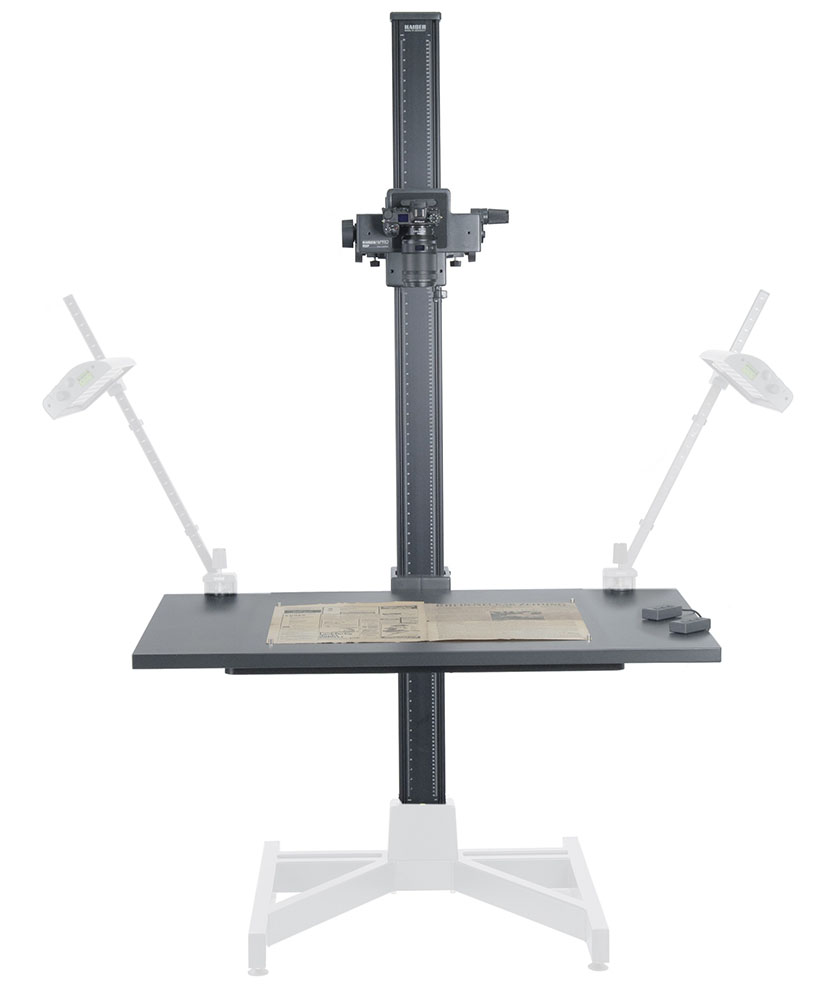

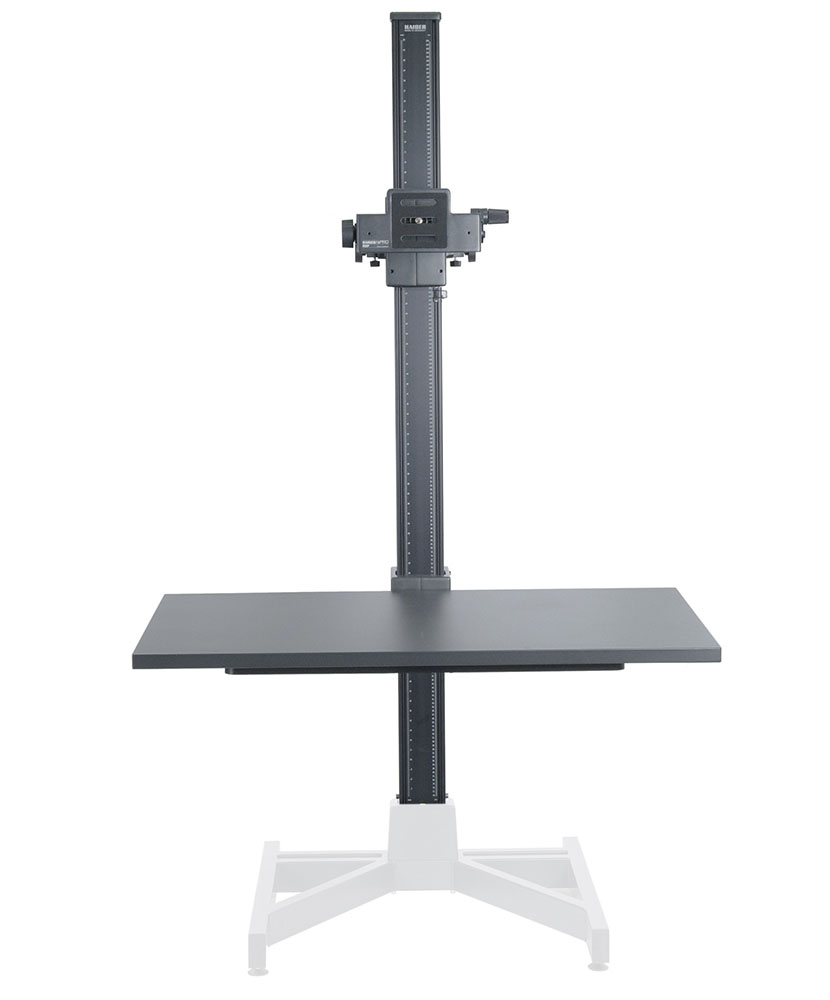

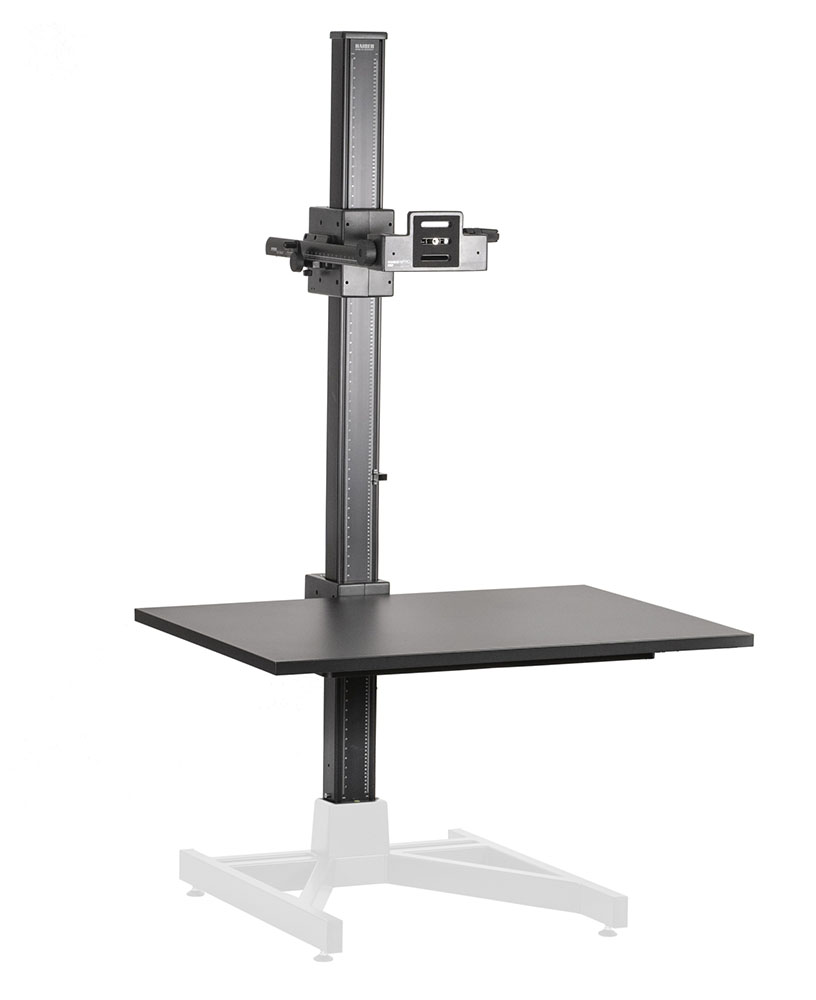

RSP 2motion Column

xtremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales and two-level motor-driven adjustment.

Camera carrier and base board with individual motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor. Anti-collision device. Cable remote control.

Detachable base board made of sheet steel with stabilizing substructure.

Camera carrier made of cast aluminum, horizontally adjustable via specially shaped parallel guides with gear rack and hand cranks for right-hand/left-hand operation. Two blocking screws.

Camera mounting plate can be swiveled by +/- 90° with high-precision fine adjustment. Built-in spirit level.

Made in Germany

Description

Specifications:

Total height: 216 cm (85 in.)
Column cross section: 12 x 8 cm (4.7 x 3.1 in.)
Maximum load:  on camera carrier: 10 kg (22 lbs.)
on base board: 15 kg (33 lbs.)
Base board: 129 x 89 cm (50.8 x 35 in.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 3/8″ / 1/4″
100-120V/60Hz, US Plug

Subject to errors and technical changes.
